0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm

  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
Lieu d'origine Anping de Chine
Nom de marque QIANPU
Certification ISO
Quantité de commande min 1 rouleau
Prix negotiable
Détails d'emballage 1. le tuyau intérieur de carton d'utilisation pour le cas/carton en bois en plastique de l'utilisati
Délai de livraison 2 semaines
Conditions de paiement T/T, Western Union, LC
Capacité d'approvisionnement 3000 rouleaux par mois
Détails sur le produit

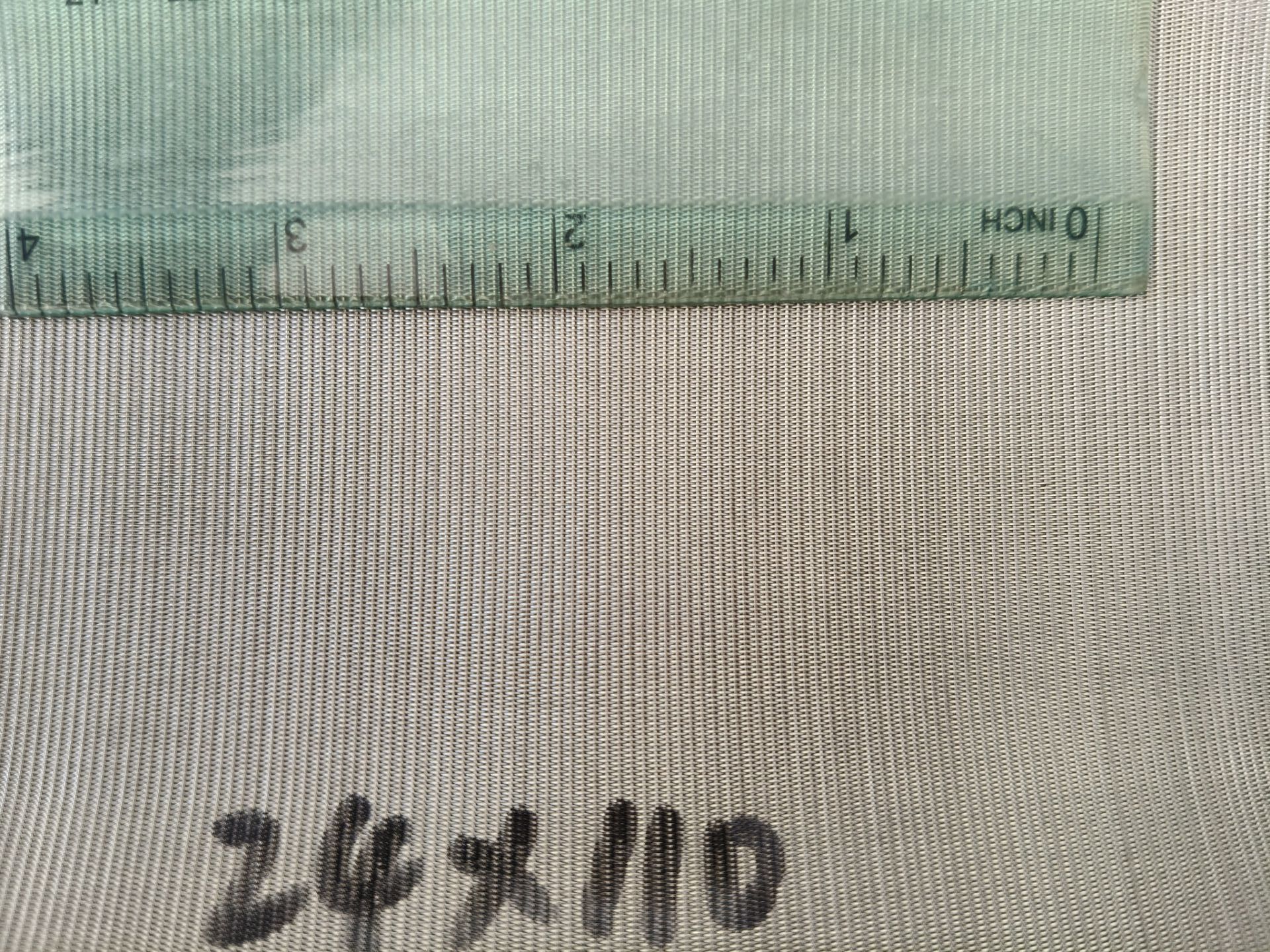

Nom de production Treillis métallique hollandais en acier inoxydable 24 x 110 Matériel acier inoxydable 304, 316
Type tissé armure néerlandaise Comptage de maille 24x110
Diamètre du fil 0,35 mm x 0,25 mm Largeur 0.5m à 2m
Longueur 30m Application Filtration industrielle
Mettre en évidence

SS304 stainless steel wire mesh

,

0.35mmx0.25mm wire mesh

,

stainless steel Dutch wire mesh
Laisser un message
Description de produit

The structure of Dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. and mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. is usually bigger than that of the warp wires; Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. square mesh.Present densest dutch woven cloth can have the mesh opening size as small as 3 microns.So we also call dutch woven mesh micron-grade filter cloth.



Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.





Plain Dutch Weave Spections:



Mesh Wire Diameter mm Filtration Fineness um Weight / m2 kg
8x62 0.63x0.45 300 5.42
10x79 0.50x0.35 250 3.16
12x64 0.50x0.40 280 3.2
14x88 0.40x0.30 220 2.5
15x100 0.40x0.27 210 2.35
20x120 0.30x0.23 160 1.9
24x110 0.35x0.25 150 2.35
24x140 0.27x0.19 110 1.7
30x150 0.25x0.17 80 1.55
30x180 0.25x0.15 70 1.4
40x200 0.19x0.13 60 1.2
50x250 0.15x0.11 50 0.95
60x300 0.13x0.09 45 0.75
70x350 0.12x0.08 35 0.7
80x400 0.12x0.07 34 0.7
70x500 0.12x0.06 32 0.65
100x600 0.10x0.05 30 0.6


Dutch twilled weave Specifications:



Mesh Wire Diameter mm Filtration Fineness um
Weight
(kg/sq.m)
20x200 0.335x0.28 118 4.58
20x260 0.25x0.20 119 3.14
24x300 0.28x0.18 110 3.01
30x250 0.28x0.20 77 3.41
30x340 0.28x0.16 89 2.84
40x560 0.18x0.10 70 1.73
80x700 0.12x0.08 30 1.26
80x780 0.12x0.07 28 1.22
90x780 0.10x0.07 26 1.24
100x780 0.10x0.07 25 1.13
120x1100 0.07x0.05 18 0.86
165x800 0.07x0.05 25 0.58
165x1400 0.07x0.04 14 0.75
200x600 0.06x0.04 28 0.5
200x1400 0.06x0.04 12 0.72
200x1600 0.06x0.035 11 0.7
200x1800 0.06x0.03 10 0.7
250x2000 0.045x0.028 8 0.65
325x2300 0.035x0.026 5 0.57
325x2500 0.035x0.023 4 0.52
400x2800 0.03x0.018 3 0.46
400x3000 0.03x0.16 2. 0.43
400x3500 0.03x0.15 1
0.38


Materials:

304,304L,316,316L Stainless steel wire, Nickel wire, Brass wire, Low-Carbon Steel wire and Special Alloy wire.

Property:



This kind of woven wire mesh offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.



Usage:



Dutch Woven Wire Cloth are extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units, due to its stable and fine filtration capability.
