80×780 Mesh Stainless Steel Dutch Weave Wire Mesh | Ultra-Fine Precision Filter Screen for Industrial Filtration

  • 80×780 Mesh Stainless Steel Dutch Weave Wire Mesh | Ultra-Fine Precision Filter Screen for Industrial Filtration
Lieu d'origine Hengshi, Chine
Nom de marque QIANPU
Quantité de commande min 1 rouleau
Prix Negotiable according to quantity of order
Détails d'emballage 1. le tuyau intérieur de carton d'utilisation pour le cas/carton en bois en plastique de l'utilisati
Délai de livraison 2 semaines
Capacité d'approvisionnement 3000 rouleaux par mois
Détails sur le produit
Nom du produit Grillage néerlandais d'acier inoxydable Matériel Acier inoxydable 316L
Mesh Counts 80x780 Largeur 1.2 m,1.5m ou sur mesure
Longueur 30m ou personnalisé Technique Tissé
Couleur Argent brillant Caractéristiques Résistant à la corrosion, haute résistance à la traction, nettoyable et réutilisable
Application Purification de l'huile hydraulique, séparation des gaz, cartouches filtrantes, sacs filtrants e Origine Chine
Application La structure de trame dense offre une filtration constante au niveau du micron, empêchant le contour Nom du produit Grillage néerlandais d'acier inoxydable
Matériel Acier inoxydable 316L Mesh Counts Maille 80 x 70
Largeur 1.2 m,1.5m ou sur mesure Longueur 30m ou personnalisé
Technique Tissé Couleur Argent brillant
Caractéristiques La structure de trame dense offre une filtration constante au niveau du micron, empêchant le contour Application Idéal pour les applications critiques dans les processus chimiques, pharmaceutiques, agroalimentaire
Origine Chine
Mettre en évidence

80×780 stainless steel Dutch weave wire mesh

,

ultra-fine precision industrial filter screen

,

stainless steel Dutch wire mesh filter
Laisser un message
Description de produit

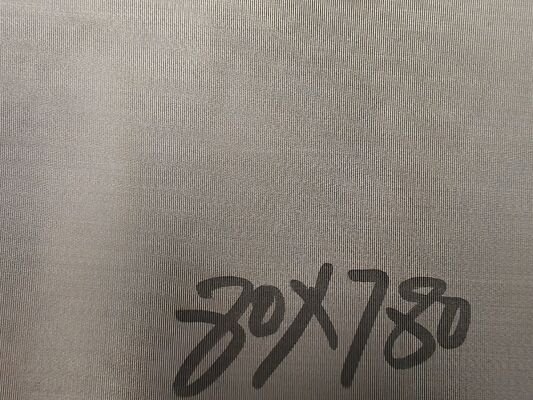

80×780 Mesh Stainless Steel Dutch Weave Wire Mesh | Ultra-Fine Precision Filter Screen for Industrial Filtration



Product Introduction



This 80×780 mesh stainless steel Dutch weave wire mesh is an ultra-fine filter media made of premium SS316L/SS304 stainless steel. With a specialized Dutch weave structure, it delivers high-efficiency, consistent sub-micron to single-digit micron filtration, exceptional pressure resistance, and long-term durability. Ideal for critical applications in chemical, pharmaceutical, food & beverage, and precision industrial processes.



Our 80×780 mesh stainless steel Dutch weave wire mesh is a top-tier precision filter media designed for demanding industrial separation processes. This ultra-fine Dutch weave pattern combines robust, high-tensile warp wires (80 mesh) with densely packed ultra-fine weft wires (780 mesh), creating a highly stable, controlled filtration structure. The result is a screen that achieves extremely high filtration accuracy while maintaining excellent mechanical strength and resistance to deformation under high pressure. It is widely recognized as a go-to solution for applications requiring fine, reliable particle retention.

.



Product Specifications

Parameter Details
Material SS316L / SS304 Stainless Steel
Weave Type Dutch Weave / Dutch Twill Weave
Mesh Count 80 × 780 mesh (warp × weft)
Filtration Rating ~1–3 μm (typical, varies by weave)
Typical Width 1000mm / 1200mm / Custom sizes
Roll Length 30m / 50m / Custom lengths
Surface Treatment Plain (no coating)
Features Ultra-fine filtration, high pressure resistance, corrosion-resistant, cleanable & reusable

Product Features



Ultra-Fine Precision Filtration: The 80×780 weave provides extremely tight, controlled openings, delivering consistent single-digit micron-level filtration efficiency. This prevents even the finest particles from bypassing, ensuring product purity and process quality.
High Pressure & Mechanical Strength: The thicker warp wires provide a strong structural backbone, allowing the mesh to withstand high differential pressures without deformation or damage. This stability is crucial for high-flow and high-pressure filtration systems.
Excellent Corrosion Resistance: Made from SS316L or SS304 stainless steel, the mesh offers outstanding resistance to acids, alkalis, chlorides, and seawater, making it suitable for use in harsh chemical, marine, and corrosive environments.
Reusable & Cost-Effective: The smooth, rigid stainless steel surface is easy to clean via backwashing, ultrasonic cleaning, or chemical cleaning. This allows for repeated use, significantly extending service life and reducing long-term operational costs.
Consistent & Uniform Flow: The precisely controlled weave pattern ensures uniform flow distribution across the entire surface, preventing channeling and maintaining stable filtration performance over time.

Application



Chemical & Petrochemical: Catalyst recovery, fine chemical processing, polymer filtration, and solvent purification.
Pharmaceutical: High-purity liquid filtration, sterile air filtration, and API (Active Pharmaceutical Ingredient) production.
Food & Beverage: Ultra-fine clarification in syrup processing, edible oil filtration, and beverage purification.
Water Treatment: Pre-filtration for reverse osmosis systems and ultra-fine filtration in desalination plants.
Industrial Filtration: Precision filter cartridges, filter bags, hydraulic oil purification, and gas separation systems.



Our Service:



Custom slitting and cutting to your required width and length.
OEM/ODM support for filter elements, sleeves, and custom assemblies.
Factory-direct competitive pricing for bulk orders.
Fast and reliable global shipping.
Free samples available for quality and performance testing.



Key words



80x780 mesh dutch weave wire mesh, ultra-fine stainless steel filter mesh, SS316L dutch weave screen, 1-3 micron filter screen, precision industrial filter mesh, high pressure filter wire mesh, reusable stainless steel filter mesh, chemical catalyst recovery mesh, pharmaceutical grade filter screen, dutch twill weave filter mesh



Mesh Counts Wire Diameter Aperture Size Weight Thickness
warp×weft warp×weft (μm) (kg/㎡) (mm)
(Mesh/Inch) (mm)
12×64 0.56×0.4 211 3.89 1.36
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.2 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.6 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.7 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.6 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
Note: Absolute filter values above should be taken as just rough estimations.



80×780 Mesh Stainless Steel Dutch Weave Wire Mesh | Ultra-Fine Precision Filter Screen for Industrial Filtration 0

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
