Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated

  • Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated
  • Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated
Place of Origin Anping of China
Nom de marque QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Features High strength and durability since high temperature sintering. Product Name Stainless Steel Sintered Wire Mesh
Material Standard material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, and Inconel. Number of Layers 5 layers
Filter Rating 1µm to 200µm Over Thickness 2 mm
Standard Size 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 300 × 1500 mm. Fabrication easily formed, sheared, welded and punched.
Porosity 40% Application usually used for purification and filtration
Mettre en évidence

Woven Sintered Wire Mesh

,

Stainless Steel Sintered Wire Mesh

,

Five Layer Sintered Wire Mesh
Laisser un message
Description de produit

Sintered Mesh Filter Screen Woven Wire Mesh,Five-Layer Stainless Steel Laminated Sintered Wire Mesh



Super Sintered Wire Mesh Characterastics:

1.Wide range of filter rating;

2.Steady filter rating;

3.HIgh mechanical strength;

4.Easy to wash;

5.Heat resistance;

6.Corrosion resistance;

7.Tractability



Material:

AISI316L,or produce according to customer's demand!



Size:

The standard sizes are 500*1000mm and 600*1200mm.Besides,other sizes within the above sizes are available according to your requirement.



Techncial Index:

Type B:

Model Structure Filter rating (u) Thickness(mm) Weight(kg/sqm) Porosity(%)
B2-0.5T Filter layer+60 2—100 0.5 1.6 60
B3-0.7T 60+Filter layer+60 2—100 0.7 2.4 56
B3-1.0T 50+Filter layer+20 20—200 1.0 3.3 58
B3-2.0T Filter layer+20+8.5 20—250 2.0 6.5 58
B4-1.0T 60+Filter layer+40+20 2—200 1.0 4.4 44
B4-1.7T 40+Filter layer+20+16 2—200 1.7 6.2 54
B5-1.9T 30+Filter layer+60+20+16 2—200 1.9 5.3 52
B5-2.5T 80+Filter layer+30+10+8.5 2—200 2.5 8.8 55
B7-2.0T 50+Filter layer+40+20+40+Filter layer+50 2—150 2.0 7.4 58

Note:

1. The filtration layer is decided by the customer as long as the Filter rating is within our specified range.
2. We can also make the mesh with other special structures requested by the customer.
3. The porosity takes that of 20mesh as criteria.

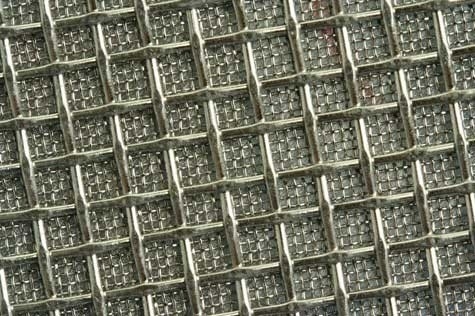

Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated 0

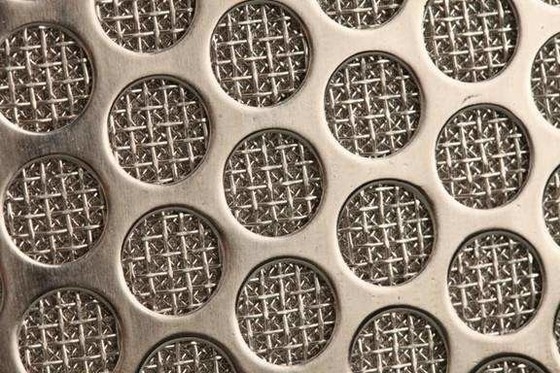

Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated 1

Advantages



Performance and advantages of steel fiber mesh:

1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.

2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.

3.High porosity and excellent permeability which results in low pressure drop and large flow.

4.Pleatable,provide a large filter area, and can be welded and machined.

5.Cleanable,can be used many times.







Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

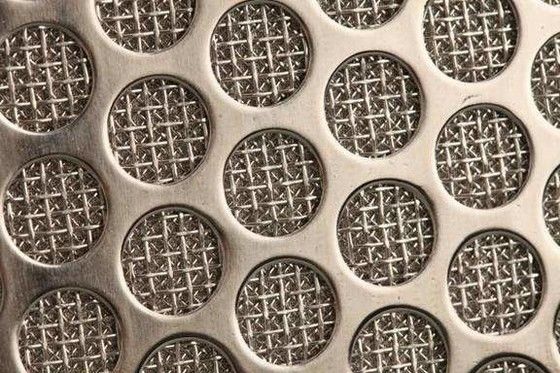

Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated 2
